EC&M / Square D No. 22 Type WB Folio 1 Magnetic Drum Brakes

$0.00
$0.00
Sold out
Request a part Request a repair $25 Flat Rate Shipping Within Canada

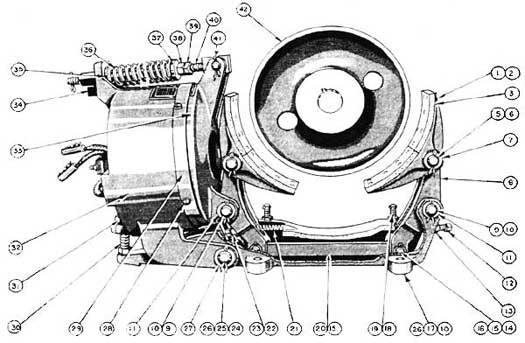

Item OEM Brake Parts Description US Part # Number Required
* WB-2280-A Series Coil
* WB-22 Shunt Shunt Coil
* WB-2283-A Coil
* 51001-071-61 Brake Block Kit
* WB-2281-A Series Coil
1 WB-2200-A Assembled Shoe, Complete
2 WB-2317-A Brake Shoe
3 WB-2340 Brake Lining
4 WB-359 Lining Rivet
5 FP-24B17 Bearing
6 WB-2213 Shoe Pin
7 WB-3227 Washer
8 WB-2204-A Shoe Lever
9 WB-2343 Shoe Lever Pin
10 FP-24B36 Bearing
11 FA-78 Washer, for Shoe Lever Pin
12 WB-2243 Equalizing Screw
14 WB-2342 Connecting Rod Pin
15 FP-24C10 Bearing
16 FP-24B18 Bearing
17 WB-2186-A Frame
18 WB-2215 Shoe Adjusting Screw
20 WB-2217-A Connecting Rod
21 WB-2330 Centering Spring
22 WB-2333 Guide Screw
24 WB-2223 Magnet Hinge Pin
25 FP-24B21 Bearing
26 FP-24C32 Bearing
27 WB-3228 Washer
29 WB-2259 Dust Shield
30 WB-233 Magnet Adjusting Screw
32 WB-2312-A Assembled Magnet
33 WB-2188-A Armature
34 WB-4236-A Spring Rod Nut
35 WB-2239 Spring Retainer
36 WB-2329 Operating Spring
37 WB-2249 Spring Collar
40 WB-2234-A Spring Rod
41 WB-225 Spring Rod Pin
43 WB-2242 Terminal Bushing
44 Q-305 Terminal Guard
46 Q-165 Lead Block Stud
47 Q-257 Lead Block
52 WB-2192-A Magnet Case
54 WB-2250 Retaining Plate
