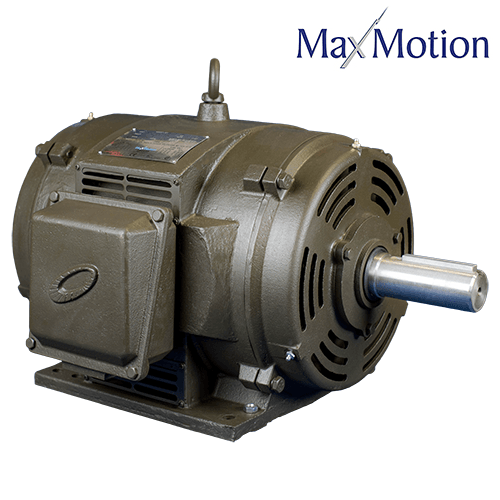

MaxMotion MQOP-43
(20HP, 1200RPM, 208-230/460V)

'- MG-1 Design B and MG-1 Part 31
- Meets or exceeds NEMA Premium Efficiencies
- Factory Certified Division 2 Class I Groups A, B, C, D Class II Groups F and G.
- Meets Temperature Code T2B.
- At 60Hz : 575v
- IP55 enclosure.
- Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF.
- Meets MG1 parts 31.4.4.2
- 1.25 Service Factor 1-50HP, 1.15 Service Factor 60-300HP
- Class F Insulation
- C and D Flanges are available
- F1 Standard Assembly, Reversible to F2 Assembly
- CSAus and CE Certified
- Three Years Warranty
